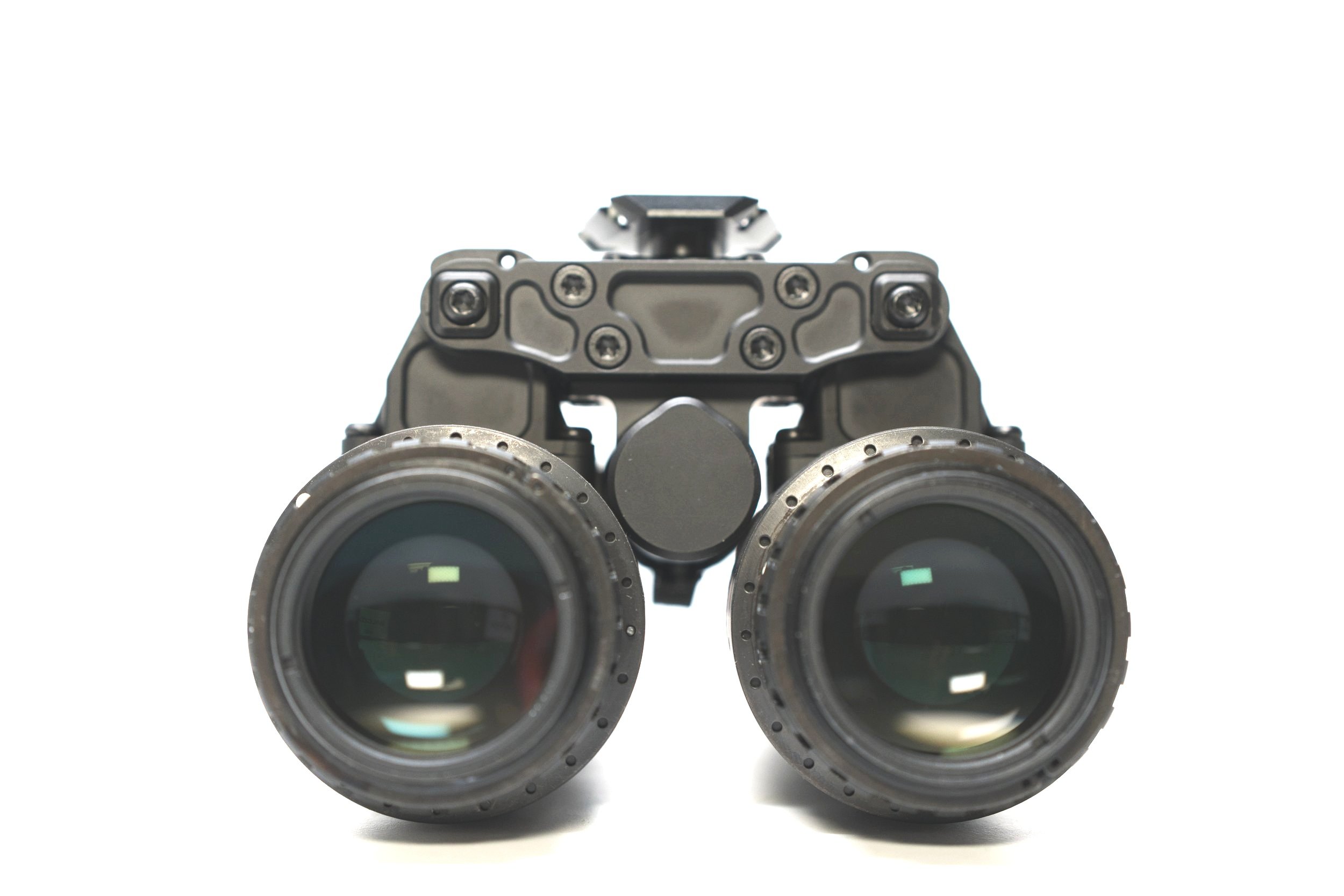

MH-1 Modular Binocular

from CA$7,999.00

Constructed from exceptionally durable materials, the MH-1 is remarkably lightweight, tipping the scales at a mere 15.3 ounces (433g) in its lightest configuration. One standout aspect appreciated by users is its seamless power source interchangeability and the capability to transform into two distinct monoculars through the innovative Modular Bridge System (MBS). Noteworthy is the manual gain feature that safeguards the tube warranty without the need for soldering, enhancing its user-friendliness.

All our MH1 assembled devices come standard with MANUAL GAIN pigtail or 3pin tubes unless stated otherwise on add to cart!

Looking to build your own Bare MH1, click here

Color:
Add Image Intensifiers:
Add lenses:

Constructed from exceptionally durable materials, the MH-1 is remarkably lightweight, tipping the scales at a mere 15.3 ounces (433g) in its lightest configuration. One standout aspect appreciated by users is its seamless power source interchangeability and the capability to transform into two distinct monoculars through the innovative Modular Bridge System (MBS). Noteworthy is the manual gain feature that safeguards the tube warranty without the need for soldering, enhancing its user-friendliness.

All our MH1 assembled devices come standard with MANUAL GAIN pigtail or 3pin tubes unless stated otherwise on add to cart!

Looking to build your own Bare MH1, click here

SPECIFICATIONS:

  • POWER SOURCE: MODULAR

  • FOCUS RANGE: 9.8” TO INFINITY

  • OPERATION TIME: APPROXIMATELY 25-90 HOURS

  • MAGNIFICATION: (1X) ONE POWER

  • FIELD OF VIEW: 40 DEGREES

  • INTERPUPILLARY ADJUSTMENT: 51 TO 78MM

  • DIOPTER ADJUSTMENT: -6 TO +2

  • EYE RELIEF: 25MM

  • WEIGHT: 434g

  • WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS

  • INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE

FEATURE LIST:

Rotational pod shutoff

Manual gain control (4 pin plug-in)

Dual power IR illumination

IPD stops

Modular pods (Ability to split into monos)

Onboard power (Modular)

External power (Modular)

Modular mounting platforms (Dovetail/Ball detent)

Adjustable pod tension

Updated Electronics: New PCB with manual gain compatibility with Pigtail & 3 pin NNVT, Photonis & other IITs.

〰️

Updated hardware: Low Pro battery compartment, revised & ruggedized delrin hinge mech, oversized screw points, extended dovetail included in box.

〰️

Updated Electronics: New PCB with manual gain compatibility with Pigtail & 3 pin NNVT, Photonis & other IITs. 〰️ Updated hardware: Low Pro battery compartment, revised & ruggedized delrin hinge mech, oversized screw points, extended dovetail included in box. 〰️
